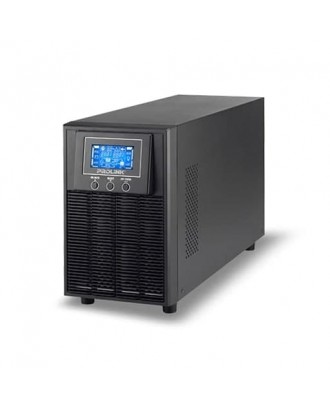

GENERAL

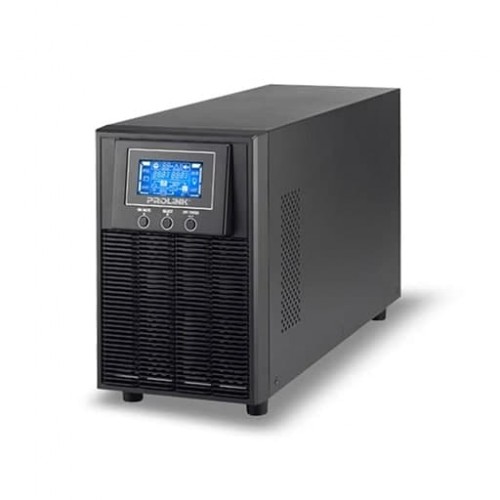

– UPS Type: Tower

– Phase: Single phase with ground

– Rating (VA): 1000

– Nominal Power (W): 900

– Standard Model Dimension (mm): 397 x 145 x 220 (D x W x H)

– Weight (kg):  5.8

INPUT

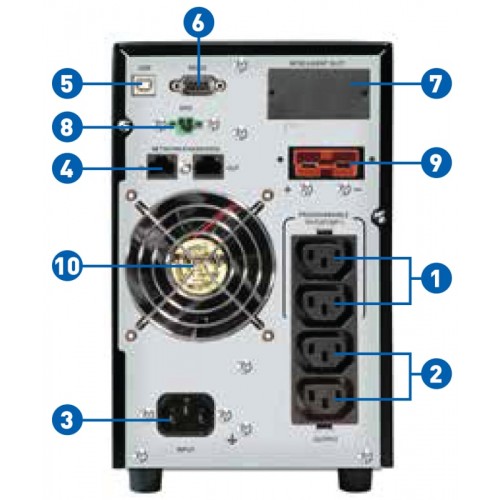

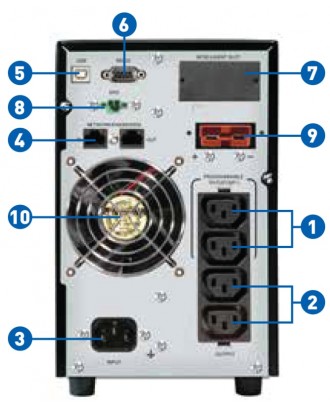

– Connection Type: IEC 320-C14

– Nominal Voltage: 200/208/220/230/240 VAC

– Voltage Range: 110-300 VAC (Based on load at 50%) 160-300 VAC (Based on load at 100%)

– Frequency Range: 40 Hz ~ 70 Hz

– Power Factor: ≧0.99

– THDi: ≦ 5% @100~130VAC or 205-245VAC THDU < 1.6% @ input and full linear load condition with battery fully charged

OUTPUT

– Connection Type: 4 x IEC 320-C13

– Nominal Voltage: 200/208/220/230/240 VAC

– Voltage Regulation: ±1%

– Frequency Range (Synchronized Range): 47~53 Hz or 57~63 Hz

– Frequency Range (Batt. Mode): 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz

– Current Crest Ratio: 3:1

– Harmonic Distortion: ≦2% THD (Linear load) ≦4% THD (Non-linear load)

ALARM & INDICATORS

– Battery Mode: Sounding every 4 second

– Low Battery: Sounding every second

– Overload: Sounding twice every second

– Fault: Continuously sounding

– LCD: Load level, Battery Level, AC mode, Battery mode, Bypass mode and Fault

CONNECTIVITY, CONTROL & MONITORING

– Front panel: Status LED, Function keys,LCD display

– Communication: Smart RS232* USB Port Emergency Power Off (EPO)

BATTERY

– Standard Model Type: 12V / 7Ah

– Numbers: 3

– Typical Recharge Time: 4 hours recover to 90% capacity
