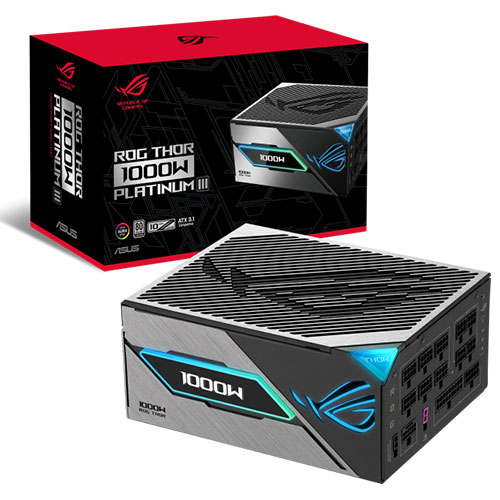

ROG Thor 1000W Platinum III ( 1000W / 80 Plus Platinum / 10 years warranty / PCIe 5.1 Ready )
- Brand:ASUS
- Product Code:ROG Thor 1000W Platinum III
-
$425.00
Model
ROG Thor 1000W Platinum III
Intel Specification
ATX12V
PFC Type
Active PFC
ATX Standard
ATX 3.1
Dimensions
190 x 150 x 86 mm
Efficiency
80Plus Platinum
MTBF
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
30A 25A 83.33A 0.3A 3A
Combined Load
125W 125W 1000W 3.6W 15W
Total Output
1000W
Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1
PCI-E 6+2-pin x 4
SATA x 7
PERIPHERAL x 6
CPU 4+4-pin x 2
PCI-E 16-pin x 1
PCI-E 6+2-pin x 4
SATA x 7
PERIPHERAL x 6
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
PCI-E Gen 5.1 16-pin Cable x 1 (750mm)
PCI-E Cable 1-to-1 x 4 (750mm)
SATA Cable 1-to-4 x 1 (400+120+120+120mm)
SATA Cable 1-to-3 x 1 (400+120+120mm)
Peripheral 1-to-3 x 2 (400+150+150mm)
Addressable RGB Cable x 1 (800mm)
ROG sticker x 1
ROG cable tie x 6
Chassis Screws Package x 1
Cable Tie x 12
User Manual x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
PCI-E Gen 5.1 16-pin Cable x 1 (750mm)
PCI-E Cable 1-to-1 x 4 (750mm)
SATA Cable 1-to-4 x 1 (400+120+120+120mm)
SATA Cable 1-to-3 x 1 (400+120+120mm)
Peripheral 1-to-3 x 2 (400+150+150mm)
Addressable RGB Cable x 1 (800mm)
ROG sticker x 1
ROG cable tie x 6
Chassis Screws Package x 1
Cable Tie x 12
User Manual x 1
Weight
2.37 KG
AURA SYNC
ARGB
Cybenetics Noise Level Certification
A++
0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load
0dB Fan Button
Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
