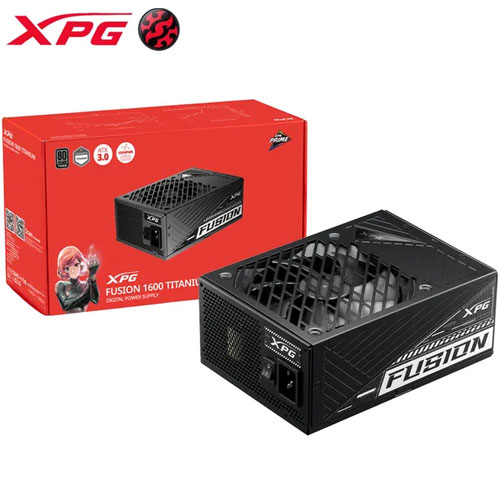

XPG FUSION 1600W TITANIUM ( 1600W/ 80 Plus TITANIUM / 12 Years Warranty / ATX3.1 Ready )
- Brand:Adata
- Product Code:XPG FUSION 1600W TITANIUM
-
$499.00
Dimensions (L x W x H)
210 x 150 x 86mm
Cybenetics Rating
TITANIUM
80 Plus Rating
TITANIUM
ATX Version
ATX 3.0 & ATX 3.1
Protections
OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP
Certification
CE | CB | FCC (IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | CQC | EAC
PFC
> 0.99
Input Voltage
(1) 100-240V
(2) 115-240V
(2) 115-240V
Input Current
(1) 15A | 8A
(2) 15A | 8A
(2) 15A | 8A
Input Frequency
(1) 47-63Hz
(2) 47-63Hz
(2) 47-63Hz
DC Output Voltage
+5V | +3.3V | +12V | -12V | +5Vsb
Total Output
(2) 1600W
Power Excursion
3760W (*up to 235% of the PSU's rated power for 100μs)
Operating Temperature
50°C
Fan Size
135 x 135 x 25mm
Fan Bearing
Double Ball Bearing
Fan Speed
2700 ± 10% RPM
MTBF
125,000 hours @ 25°C
ATX 24 Pin Connector
1
EPS 8 Pin Connector
2
PCI-E 6+2 Pin Connector
10
Molex 4 Pin Connector
4
12V-2x6 / 12VHPWR (12+4) Connector (600W)
2
SATA Connector
12
Weight
Product + cables：2.5kg + 1.84kg (5.51lb+4.06lb) ±5%
Warranty
12 Years
Floppy 4 Pin Connector
1
