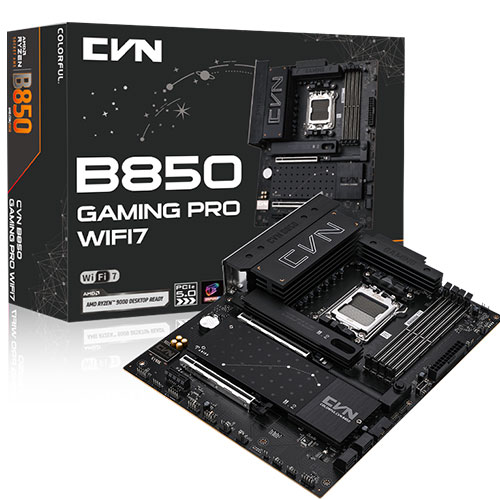

CVN B850 GAMING PRO WIFI7 V14 (LGA AM5 / Ram DDR5 / Wifi 7 +Bluetooth )
- Brand:Colorful
- Product Code:CVN B850 GAMING PRO WIFI7 V14
-
$199.00
| Product image |  |
|---|---|
| Model | CVN B850 GAMING PRO WIFI7 V14 |
| Product Series | CVN Series |
| Chipset | AMD B850 |
| Processor | Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard (*Please visit the Colorful official website www.colorful.cn for the latest processor support list) |
| Memory | 4 DDR5 memory sockets are provided, which can support up to 256 GB of memory (a single socket can support up to 64 GB of memory) - Support DDR5-8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800MHz memory - Support Extreme Memory Profile (XMP) memory technology - Support EXtended Profiles for Overclocking (EXPO) memory technology - Supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 3 M.2 slots and 4 SATA 6Gb/s hard drive interfaces - M.2_1 slot: Supports 2242/2260/2280/22110 M.2 SSDs (PCIe 5.0/4.0 x4, CPU channel) - M.2_2 slot: Supports 2242/2260/2280 M.2 SSDs (PCIe 5.0/4.0 x4, CPU channel) - M.2_3 slot: Supports 2242/2260/2280 M.2 SSDs (PCIe 4.0 x4, Chipset channel) (*PCIe 5.0 support depends on the motherboard's CPU) Supports creating RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using M.2 NVMe hard drives. Ryzen 9000 Series: RAID 0/1/5/10 Ryzen 8000 Series: RAID 0/1 Ryzen 7000 Series: RAID 0/1/10 *Supported RAID configurations depend on the CPU paired with the motherboard. |
| Board I/O | Rear I/O: -2×USB 2.0 interfaces -4×USB 3.2 Gen 1 5Gbps Type-A interfaces -1×USB 3.2 Gen 2 10Gbps Type-A interface -1×USB 3.2 Gen 2 10Gbps Type-C interface -1×HDMI 2.0 interface, up to 4K 60Hz resolution -1×DP 1.2 interface, up to 4K 60Hz resolution -1×5G network interface -2×Wi Fi 7 antenna interfaces -5×Audio interfaces (audio input/output/microphone) -1×S/PDIF audio interface -1×BIOS update button On board : -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 Pin expandable with 2 USB 3.2 Gen 1 5Gbps Type-A interfaces -1×USB 3.2 Gen 1 Type-C Slot expandable with 1 USB 3.2 Gen 1 5Gbps Type-C interface -1×CPU fan pin -3×System fan pins -1×Water-cooled pump pin -4×5V 3-pin ARGB pins -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×COM port pin -1×Clear CMOS jumper -1×BIOS burner pin |
| Expansion Slots | 1 PCIe 5.0 x16 slot 1 PCIe x16 slot (supports PCIe 4.0 x4 specification) 1 PCIe 3.0 x1 slot |
| BIOS | 256M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8126-CG 5Gbit network card, MT7925 WiFi 7 wireless network card, Bluetooth 5.4 - Wi-Fi functionality may vary depending on the operating system. - For Windows 11, Wi-Fi 7 requires version 24H2 or later for full functionality. Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. - For Windows 10, please note that no drivers are available. For more information, refer to the Wi-Fi chipset vendor's website. - Wi-Fi 6GHz frequency band and bandwidth regulations may vary by country/region. - Bluetooth® versions are subject to change; please refer to the Wi-Fi module manufacturer's website for the latest instructions. |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 7.1 channels |
| Configuration | ATX 305mm x 245mm |
Tags: CVN B850 GAMING PRO WIFI7 V14
